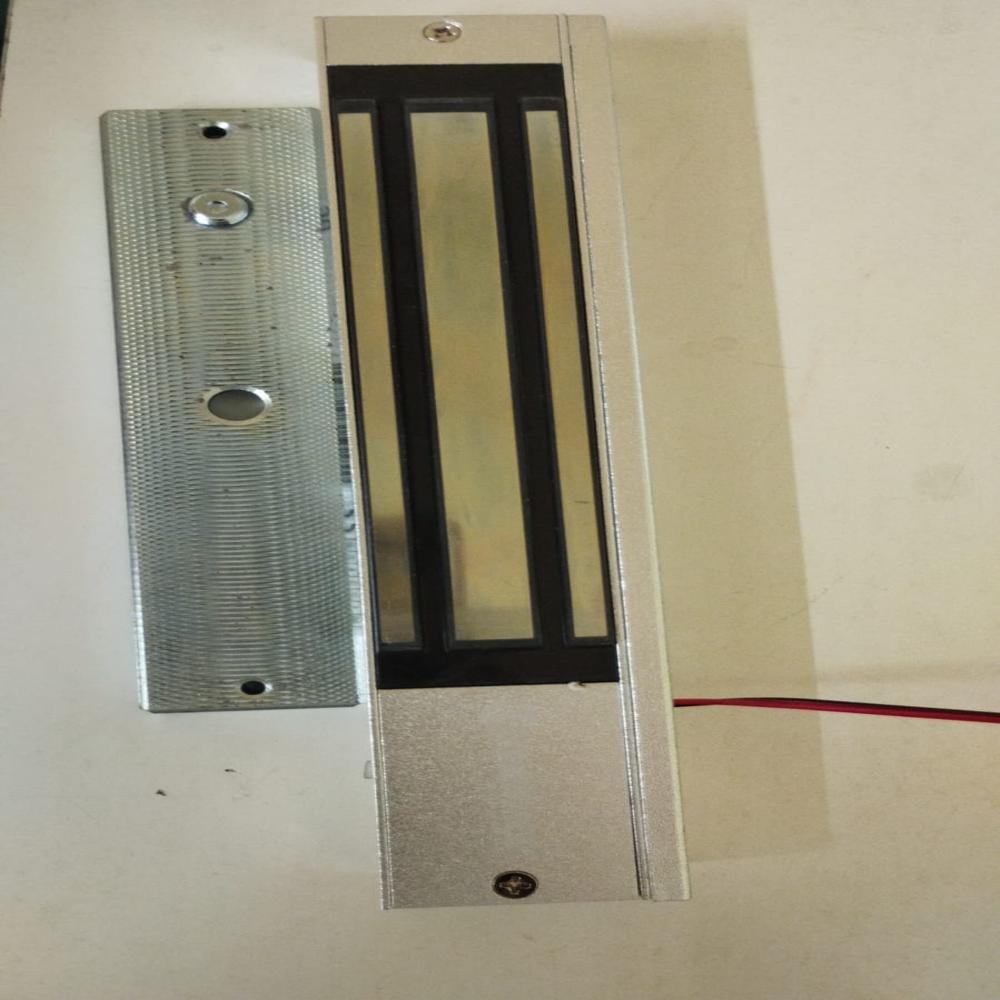

A 600 lbs Electromagnetic Lock (commonly referred to as a 600 lb Mag Lock) is a heavy-duty, motorized-latch alternative used broadly in commercial, retail, and institutional access control systems. Instead of a mechanical bolt, it uses electromagnetic force to keep a door securely sealed.

Here is a comprehensive breakdown of its specifications, design, and functionality:

1. Core Mechanism & Holding Force

• Holding Force: It provides up to 600 pounds (approximately 270280 kg) of pull resistance. This means an intruder would need to exert more than 600 lbs of direct physical force to break the magnetic bond.

• How it Works: The system consists of two main parts: an electromagnet (mounted to the door frame) and a steel armature plate (mounted to the moving door). When an electric current passes through the electromagnet, it creates a powerful magnetic field that tightly clamps the armature plate against it.

2. "Fail-Safe" Operation

A hallmark feature of standard 600 lbs mag locks is that they are strictly Fail-Safe.

• Power On = Locked: The lock requires continuous electrical power to stay locked.

• Power Off = Unlocked: If power is cut (via an access control prompt, fire alarm trigger, or power outage), the magnetic field collapses instantly, and the door unlocks. This is a critical life-safety requirement for emergency egress routes.

3. Electrical Specifications

Most 600 lbs mag locks feature dual-voltage configuration, adjustable via a manual jumper switch during installation:

• Voltage Input: Field-selectable 12V DC or 24V DC (regulated).

• Current Draw:

  • Approx. 400mA to 500mA at 12V DC.

  • Approx. 220mA to 260mA at 24V DC.

• Anti-Residual Magnetism: Premium models include built-in circuitry (often a kick-off button or electronic discharge) to ensure that the moment power is cut, residual magnetism drops to zero instantly so the door doesn't stick or drag.

4. Smart Monitoring Features (Optional but Common)

High-end variations include built-in sensors to communicate with building management systems:

• Lock Status Sensor (Bond Sensor): An internal Hall-effect sensor that detects if the magnetic field is fully secure. It typically powers an onboard LED Indicator (e.g., Green = Securely Locked, Red = Unlocked/Open).

• Door Status Switch: An integrated reed switch that tells the access control system whether the door is physically open or closed.

5. Physical Build & Dimensions

• Materials: Typically housed in a heavy-duty, corrosion-resistant Anodized Aluminum casing with zinc-plated internal components to handle high-traffic wear and tear.

• Average Dimensions:

  • Magnet Body: ~250mm (L) x 42mm (W) x 25mm (D) / approx. 9.8" x 1.6" x 1.0"

  • Armature Plate: ~180mm (L) x 38mm (W) x 11mm (D) / approx. 7.2" x 1.5" x 0.5"

6. Common Applications & Mounting

Because of its mid-to-high tiers of strength, it is primarily used for interior doors or medium-security exterior doors (like office entrances, glass storefronts, interior partition doors, and classroom doors).

Depending on the door type, different brackets are required:

• Out-swinging doors: Standard surface mount (usually requires no extra brackets).

• In-swinging doors: Requires a Z & L Bracket kit to properly position the magnet face toward the armature.

• Frameless Glass doors: Requires a specialized U-Bracket to clamp onto the top of the glass pane.
